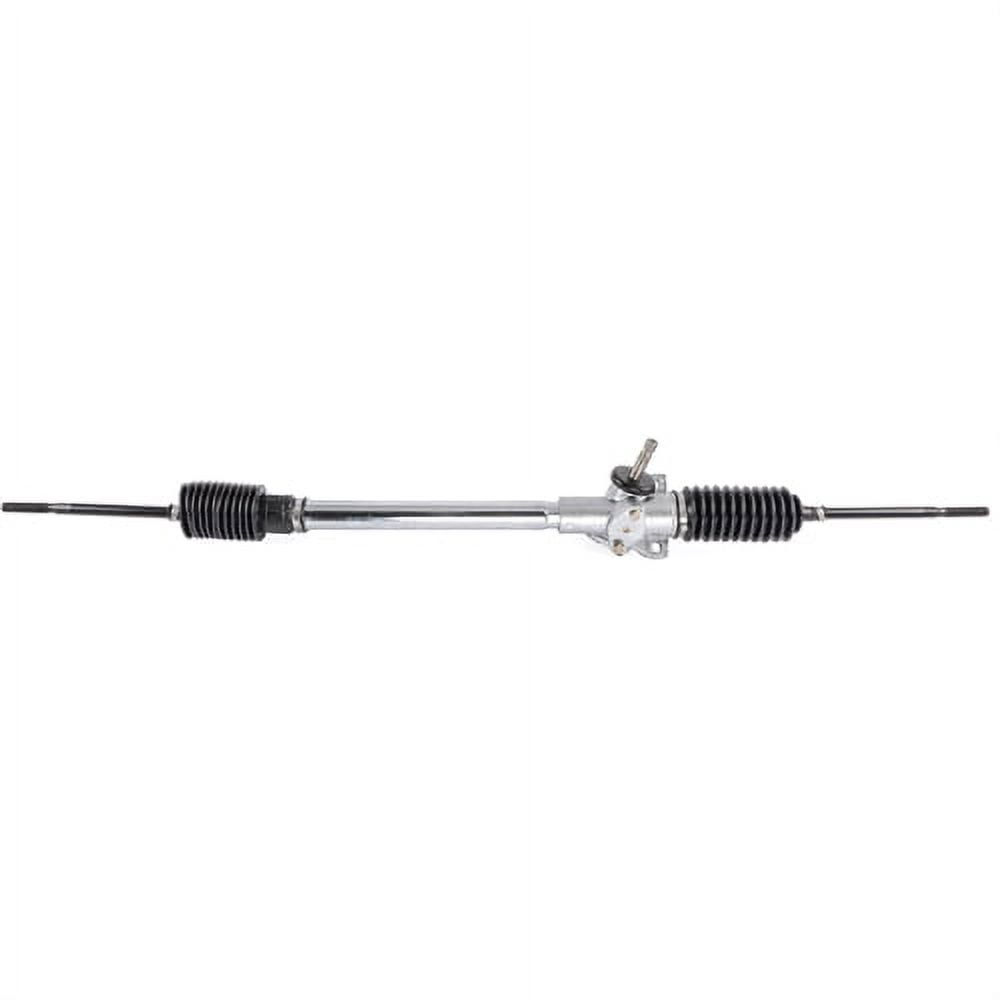

Flaming River FR1520 Manual Rack & Pinion YNT10_L3512

Product details:

Manual Rack & Pinion

1979-1993 Ford Mustang 5.0L

15:1 Quick Ratio

Front Steer

15 lbs Weight

43.75 Overall Length

5.5 Rack Travel

3.1 Turns Lock-to-Lock

FR1520 Specifications

OEM Design Style: 79-93 Ford Mustang

Steering Design: Front Steer

Total Weight: 15 lbs.

Housing Material: Die Cast Aluminum

Tube Material: Carbon Steel

Tube Plating: Chrome

Rack Gain: 1.75 per turn

No. Turns Lock-to-Lock: 3.1

Total Rack Travel: 5.5"

Overall Length (end to end): 43.75"

Housing Length: 20-3/8"

Housing O.D.: 2.1 (both ends)

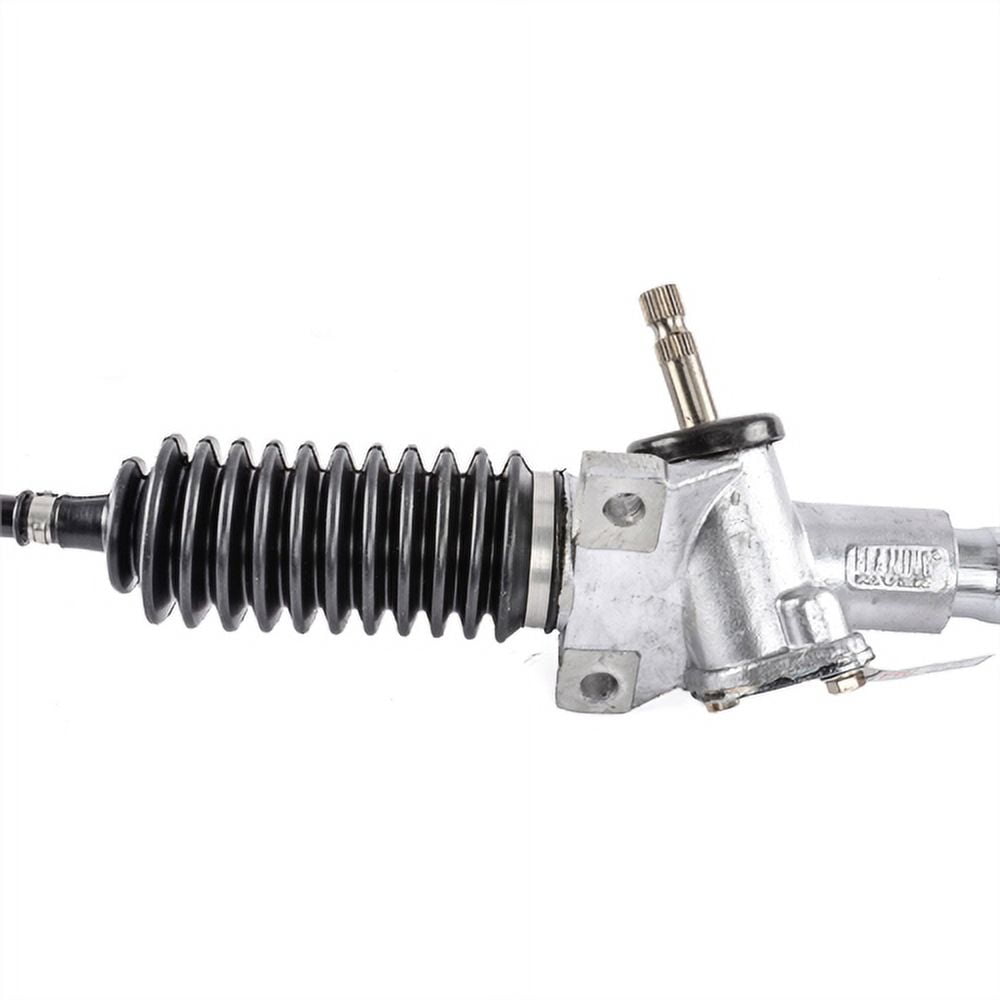

Input Shaft Angle: 72

Input Shaft Spline Size: 9/16"-26

Input Shaft Length: 6.56"

Pivot Points: 24.5"

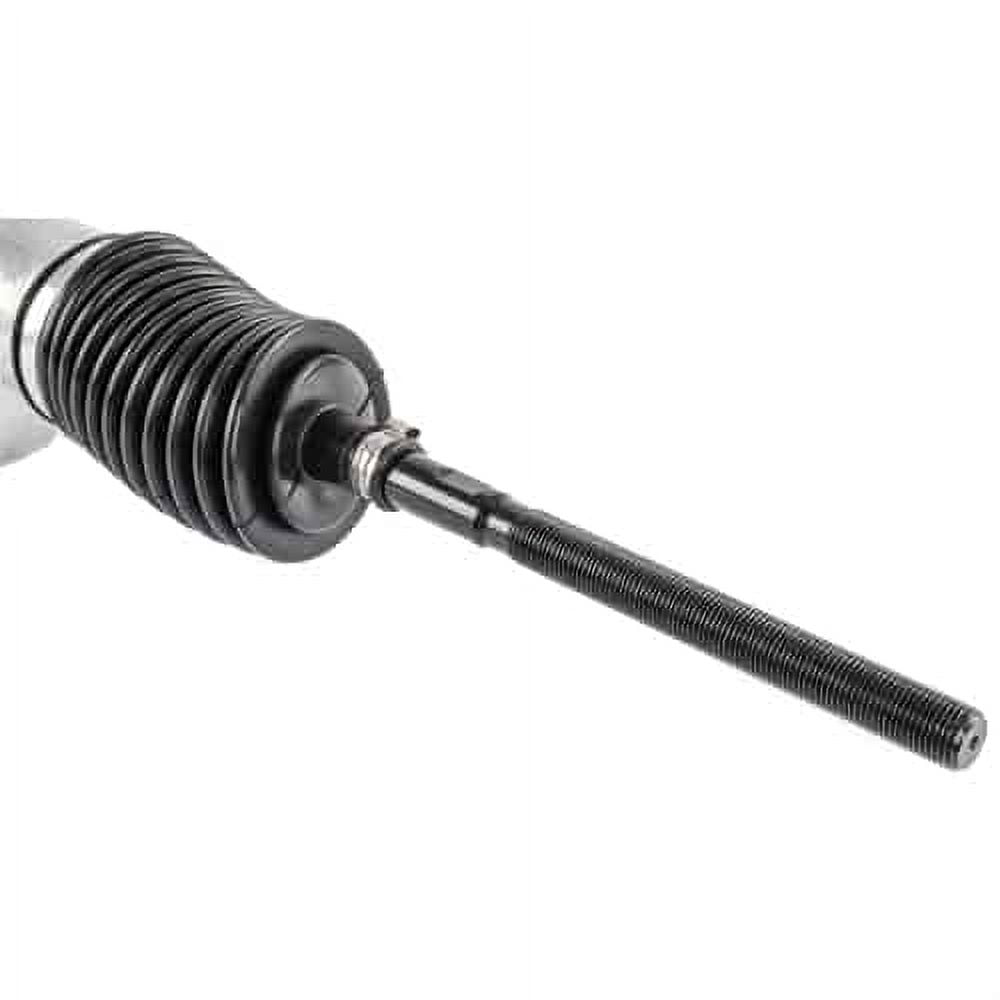

Inner End Diameter: 14mm (.551")

Inner End Thread Size: 9/16"-18

Driver Side Mount: Spike (bushing req'd)

Passenger Side Mount: Spike (bushing req'd)

Spike Mount Center to Center Distance: 15.5"

Bellows Material: Nitrille Rubber

Brand:Flaming River
Manufacturer Part Number:FR1520
Assembled Product Weight:14.81 lb
Assembled Product Dimensions (L x W x H):47.30 x 9.00 x 8.40 Inches
